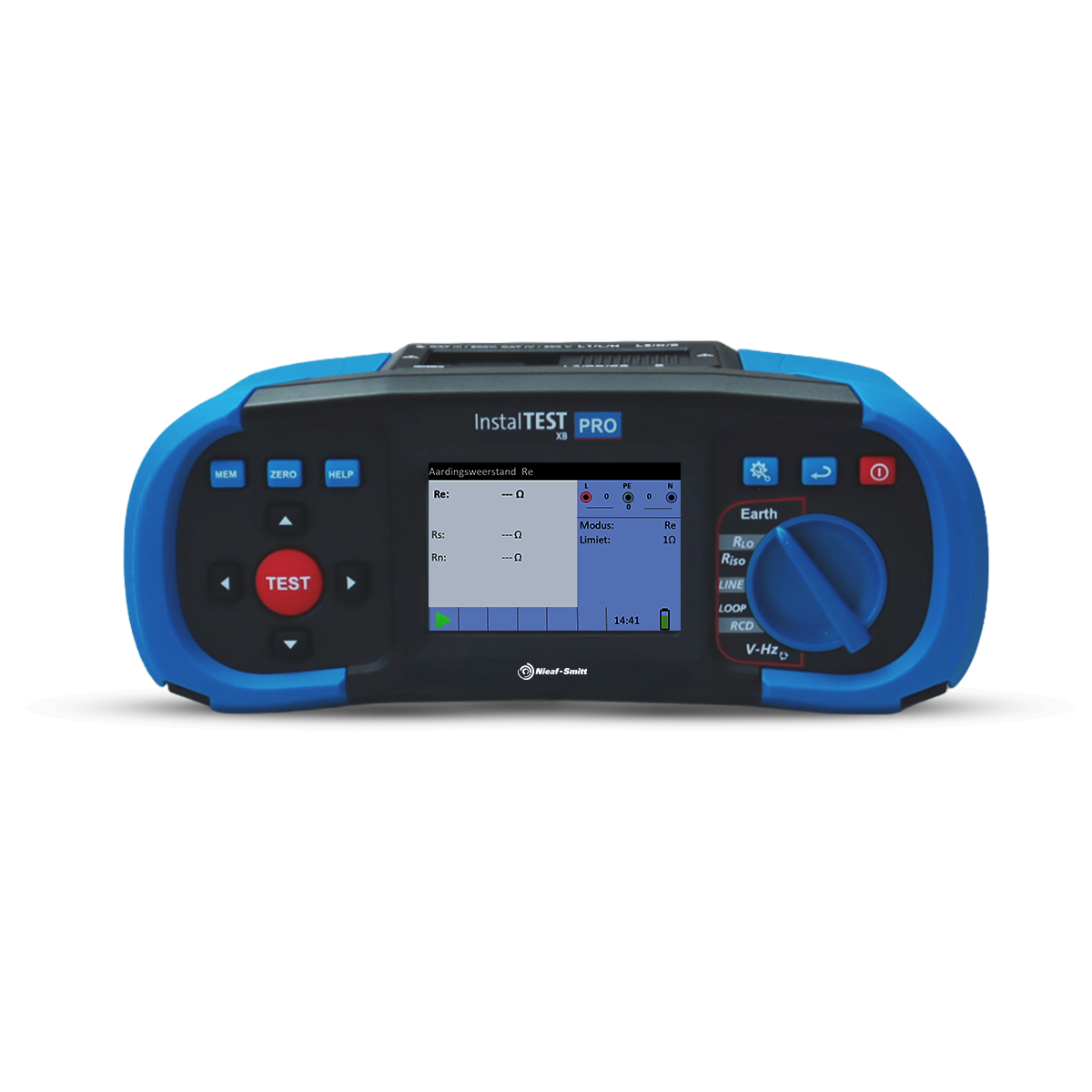

Instaltest XB Pro
The Instaltest XB Pro is an easy-to-use, compact combination installation tester compliant with NEN 1010, NEN 3140, and EN 61557 standards. The tester offers a wide range of features and supports various accessories.
| Artikelnummer | 626000881 |
|---|---|
| EAN code | 8721001145713 |
| Product | Instaltest XB Pro |
Description
The Instaltest XB Pro is an easy-to-use, compact combination installation tester compliant with NEN 1010, NEN 3140, and EN 61557 standards. The tester offers a wide range of features and supports various accessories.
Using the rotary switch, the user can easily select a measurement, which is clearly displayed on the large LCD screen. A clear Pass/Fail indication simplifies the inspection result.
Measurements
- EV charger testing with 6 mA
- RDC-DD EV protection testing according to IEC 62955
- Type B RCD testing
- Insulation resistance
- Continuity test
- Touch voltage of the RCD
- RCD trip time
- Automatic RCD test
- RCD trip current
- Earth loop resistance without tripping the RCD
- Phase rotation
- Line impedance (Z-line)
- Earth loop impedance (Z-loop)
- Voltage measurement

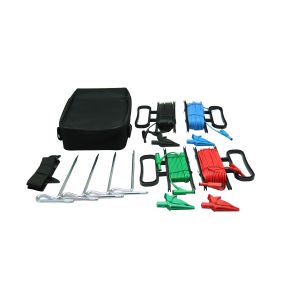

- Earth resistance measurement (3-pole and 4-pole)
- Storage of up to 1000 measured values
- Instaltest XB Pro software for data download
Need advise?
Mark is happy to help you find the right test & measurement equipment
Related products
bag Instaltest
626001078
Fuse 500mA 1000V FA CER 6.3×32
626006043
Cable USB-A-B 1,8m
500181375
Carrying Strap
626001107
Fuse 4A 32×6 F Instaltest
626006035
Testlead schuko Instaltest XB
626001105
Charger Instaltest XB
626001104
set testprobes (XB)
626001103
EVSE adapter
626001098
set test leads (XB)
626001102
Set croco clips (XB)
626001101
Remote start probe
626001100
Specifications
| Functions | |
| Insulation resistance: 50, 100, 250, 500 and 1000 V | 0.00...999 MΩ |
| Continuity test: Test current 200 mA (L-PE, N-PE) | 0.00...1999 Ω |
| Nominal voltage | 93...266 V / 45...65 Hz |
| Tripping current | 10, 30, 100, 300, 500, 1000 mA |
| Touch voltage | 0.0...99.9 V |
| Test current | 0.5 xIΔn / 1x IΔn / 2x IΔn / 5x IΔn |
| Tripping time | 0...999 ms |
| Test current | 0.5 xIΔn / 1x IΔn / 2x IΔn / 5x IΔn |
| Type | G, S |
| Current type | AC / A / F / B / EVSE |
| Earth Loop Impedance | 0.00...9.99 kΩ |
| Network Impedance | 0.00...9.99 kΩ |
| Voltage | 0...550 V |
| Frequency | 0.00...999.99 Hz |
| Rotating Magnetic Field | 100...550 VAC |
| Earth Resistance Measurement | 3-pole, 4-pole |
| Storage | 1000 measurements |
| General | |
| PC interface | USB |
| Overvoltage Category | CAT III 600 V |
| Protection Class | IP40 |
| Power Supply | 6xLR06 AA Rechargable batteries |
| Dimensions | 230 x 115 x 103 mm |
| Weight | 1.3 kg (excl. batteries) |
| Includes | Carrying strap, carrying bag, 230 V test lead, split test lead, alligator clips, quick start manual, rechargeable batteries & charger, test probe with test button. |
