EazyVolt Pro LCD voltage tester – obsolete
This version of the EazyVolt Pro LCD is no longer available.
Click here to go to the updated EazyVolt Pro LCD.

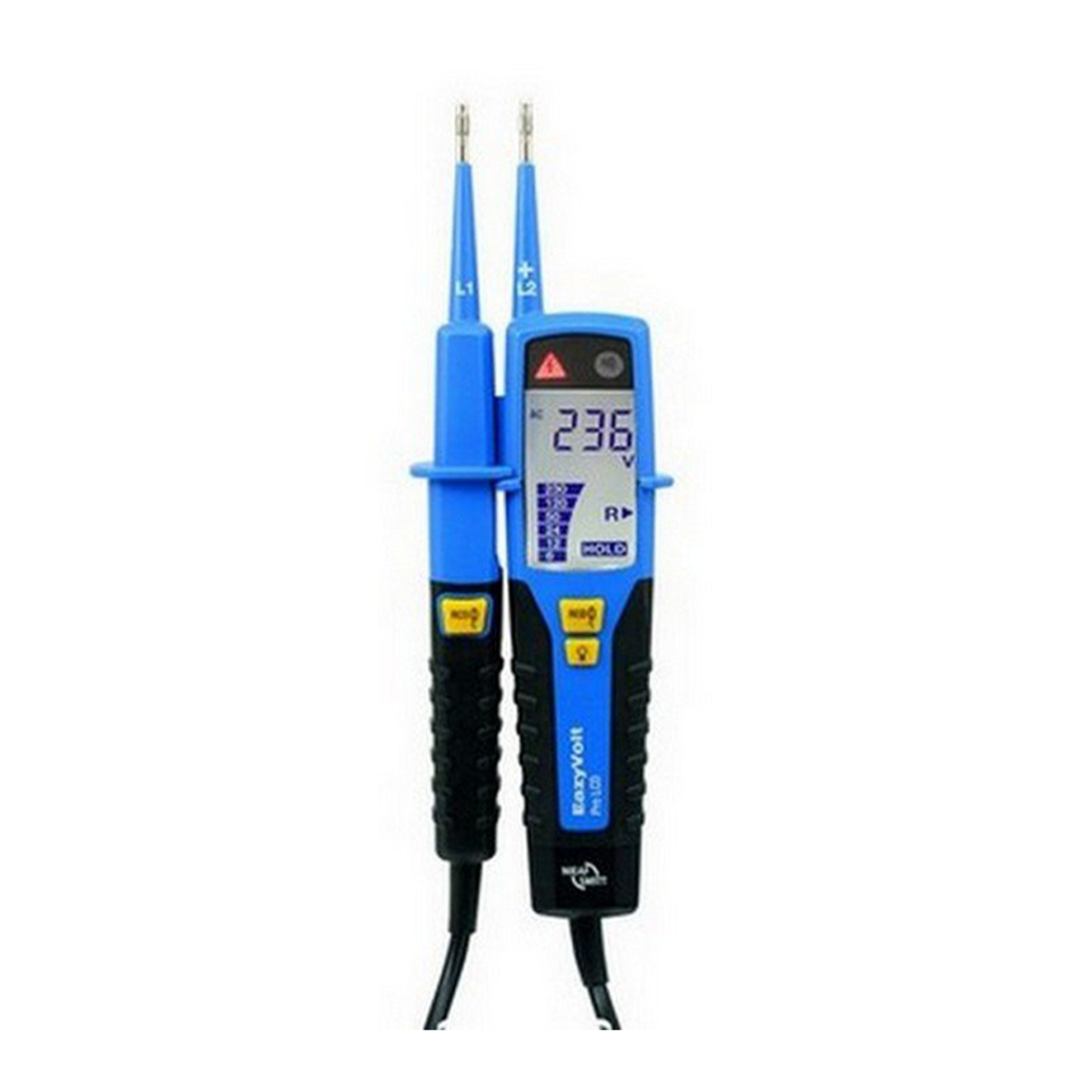

The EazyVolt Pro LCD is a reliable and safe 12-in-1 automatic voltage tester up to 1000 VAC and 1500 VDC with the following functions.
| Artikelnummer | 626002060 |
|---|---|
| EAN code | 8719075576298 |
| Product | EazyVolt Pro LCD |
Description
This version of the EazyVolt Pro LCD is no longer available.
Click here to go to the updated EazyVolt Pro LCD.
Click here to go to the updated EazyVolt Pro LCD.
The EazyVolt Pro LCD is a reliable and safe 12-in-1 automatic voltage tester up to 1000 VAC and 1500 VDC with the following functions:
- AC voltage measurement up to 1000 V
- DC voltage measurement up to 1500 V
- Single-pole phase detection
- Non-contact voltage detection
- Resistance and frequency measurement
- Continuity / diode test
- RCD (residual current device) test
- Phase rotation direction
Features
- Large LCD screen with backlight
- High-resolution voltage measurement (0–30 V)
- Acoustic signal
- Vibration function
- Cable break detection
- Test point illumination with bright LED
- Stray voltage suppression
- Measurement value hold function
- Selectable test probes 2–4 mm
- LED indication on the side
- Water-resistant (IP65)
- Self-test
- Suitable for direct measurement on wall outlet (19 mm)
- One-hand operation

Need advise?
Mark is happy to help you find the right test & measurement equipment
Related products
Specifications
| Functions | Range |
| Voltage | 1..1000 V AC 1..1500V DC |
| Continuity | < 500 KΩ |
| Resistance | 0..2 kΩ |
| Frequency | 16-800Hz |
| General | |
| Auto power on | > 6 VAC/DC |
| LCD resolution | 0.1V (1…29.9 V), 1V (30…1500 V) |
| Voltage detection | Automatic |
| Reaction time | < 1 s |
| Power supply | 2x AAA 1.5 V batteries |
| Protection class | IP 65 |
| Overvoltage category | CAT IV 600 V / CAT III 1000 V |
| Drop resistance | 1 meter |
| Standards | EN 61010-1 / -031, EN 61243-3, EN 60529, EN 61557-7/ -10/ -1, EN 61326, EN 55011 |
| Certifications | CE, TÜV, GS |
| Dimensions | 280 x 74 x 34 mm |
| Weight | ± 220 g (incl. batteries) |
| Includes | Batteries, User manual |
